Topic: Ramco Mirror. (Read 1040 times) previous topic - next topic

Ramco Mirror.

I have a local shop that does fantastic metal polishing, mainly on motorcycles.  I have contemplated having him polish my dull aluminum mirrors ... but.. How do you remove them ?
I know that there is a mass of wires that are attached to the mirror motors and heaters.  Is there a connector that you can take apart when mirrors are removed from body ?  I would hate to have to cut and splice all those wires.
Thanks
Gary B

Re: Ramco Mirror.

Reply #1 –
I just scanned some of my documents last weekend. One of them was the schematic for the Ramcos. It shows what look like connectors in the wiring. This for my 92' so your milage may vary.

see ya
ken
The selected media item is not currently available.ken & dori hathaway & Big Agnes
🍺1992 U300 GrandVilla WTBI #4150 FOT FBP 2011
✨6V-92TA DDEC Parlor Coach 350HP Series 92
🏁2011 Nissan XTerra Pro-4X

Re: Ramco Mirror.

Reply #2 –
I would call Xtreme
The selected media item is not currently available. Dave Head & Megan Westbrook
Titusville, FL - The Great Outdoors
'98 270 buying this month
Toad is a 2018 F150 XLT

Re: Ramco Mirror.

Reply #3 –
Gary,

Xtreme cut and spliced mine in the past when they removed the mirrors.

I just had my mirrors polished on the coach.  And I have polished them on the coach in the past.

Look really good when polished.
Rudy Legett
2003 U320 4010 ISM 450 hp
2001 U320 4220 ISM 450 hp
1995 U320 M11 400 hp
1990 Granvilla 300 hp 3208T
Aqua Hot Service Houston and Southeast Texas

Re: Ramco Mirror.

Reply #4 –
I had my driverside mirror chopped off the motorhome on the fifth of march.  Ramco sent full replacement parts including harness attached on mirror side.  It took only about a half hour to reattach and terminate ends of harness.  On my coach as you step up front entry at stair well is all the 12v circut breakers. Among these wires were the harness attachments.  I just snapped the old connection apart and connected the new ends.  The only wires that I had to splice together were the turn signal black and white wires. In my case I had two sets because of type of miror, I took both and just connected white to white and black to black.  It worked.  Your coaches should be just as easy.

Re: Ramco Mirror.

Reply #5 –
A couple of years ago I was going to have mine polished or chromed........rather than do that, Biscuit at FT painted them white to match my coach.....came out great and won't have to keep them shined any longer.
Steve Mudd
Commander, The Crystal Ship
CEO, Retirement Clearinghouse International
1993 Grand Villa U300 40', Detroit 6V92 Turbo
1997 Jeep Wrangler Sport
2008 Harley-Davidson Ultra Classic
2000 Harley-Davidson Wide Glide
swmudd@aol.com

Re: Ramco Mirror.

Reply #6 –
Our Ramco mirrors have a rectangular access hole in the bottom the arm where wires can be cut and later spliced. This works if you are leaving the base attached.

If removing the base too, our wires can be accessed from inside the front cap, where we cut and spliced them back.

We did not originally have a plug, but when we installed new mirrors last year we added a plug in the access hole.


Re: Ramco Mirror.

Reply #7 –
Quote from: Gary Bouland –
I would hate to have to cut and splice all those wires.
Thanks
Gary B

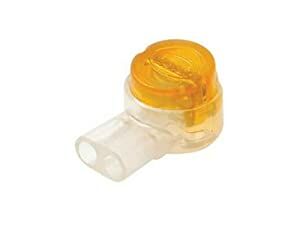

The folks at the telephone company make that real easy.  Just check these out:  Amazon.com: 50 Pieces Yellow Button Gel Filled Phone Wire Butt Splice UY.

They can be found in many different sizes today.
As an Amazon Associate Foretravel Owners' Forum earns from qualifying purchases.
1994 U225
build #4514
