Topic: What is leaking? (Read 461 times) previous topic - next topic

What is leaking?

1991 U300 6V92

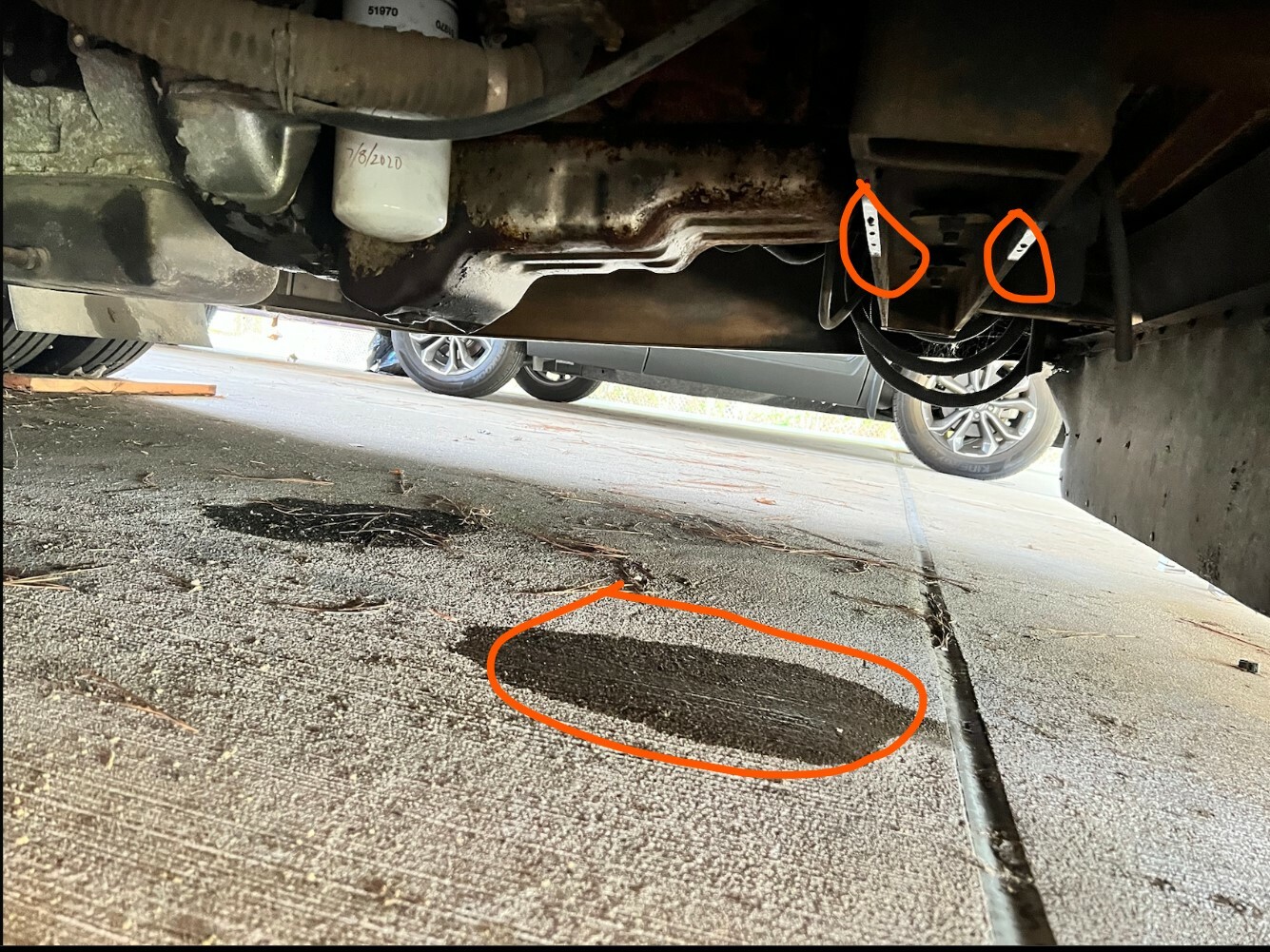

Today, I went to storage to prepare for a trip next month. The engine starts fine and air pressure build up normally. Then after a while, I start smell something strange. I went back and there is liquid dripping on the ground. It is scary. The liquid looks very watery and smells like diesel. What could it be? Ruptured fuel line?

1991 Grand Villa U300

Re: What is leaking?

Reply #1 –
I would look at fuel filter that is above the leak. It is way up high.
Ken & Peggy
91 GV  U300 40'
DD 6v92
Build #3819
2023 Canyon Denali 4x4 crew cab

Re: What is leaking?

Reply #2 –
Thanks!

Can I drive like this for a few miles to the shop?
1991 Grand Villa U300

Re: What is leaking?

Reply #3 –
Quote from: Running Odometer –
Thanks!

Can I drive like this for a few miles to the shop?

Sorry, we really have no information to be able to safely advise you.

If it is a fuel leak, certainly not.

You really need to find the source.  The good news is that it looks like a significant enough leak that is should be easy to find.
Brett Wolfe
EX: 1993 U240
Moderator, ForeForum 2001-
Moderator Diesel RV Club 2002-
Moderator, FMCA Forum 2009-2020
Chairman FMCA Technical Advisory Committee 2011-2020

Re: What is leaking?

Reply #4 –
On the 6/92 the fuel pump is on the back of the engine right above the water pump it kind of looks like a triangle with a braided line coming of it the leads back to the heads on both side and run through the ecm . Check there for your leaks. I repeat do not drive it .
Andy & Eileen
MONTROSE COLORADO
1992 U300  40' 6V92 TA
2016 4 Runner
1998 Jeep Grand cherokee

1998 Jeep Grand Cherokee) Build # 4135 Skp# 122921

Re: What is leaking?

Reply #5 –
Quote from: Andy 2 –
On the 6/92 the fuel pump is on the back of the engine right above the water pump it kind of looks like a triangle with a braided line coming of it the leads back to the heads on both side and run through the ecm . Check there for your leaks. I repeat do not drive it .
Thanks for the suggestion.
1991 Grand Villa U300


Re: What is leaking?

Reply #6 –

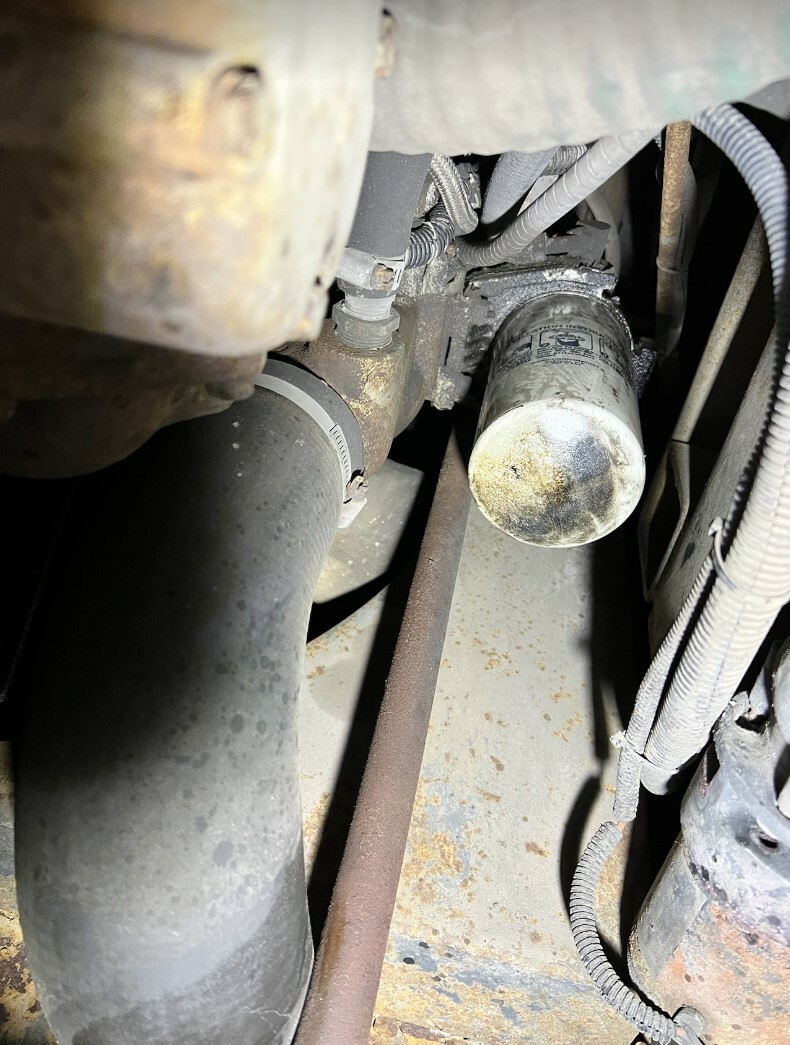

I think I found out what is leaking. I think @kpbowser nailed it.


I didn't even know that filter there. I have changed all other filters except this one. It is hidden in the back of the engine. So this one must be very very old. maybe over 10 years old. I hope this filter is the cause of the leak. Otherwise it is going to be more expensive to fix. new filter ordered. Will update if it fixes the leak or not.



How many filter are used on the 91 U300 6V92 Engine?

    • Fuel Filter NAPA 3120
    • MANN HUMMEL 24071 coolant filter
    • WIX 51970 Lub filter
    • NAPA 1268
    • Engine Air filter WIX 46726
    [/list]

    Thanks
    1991 Grand Villa U300
