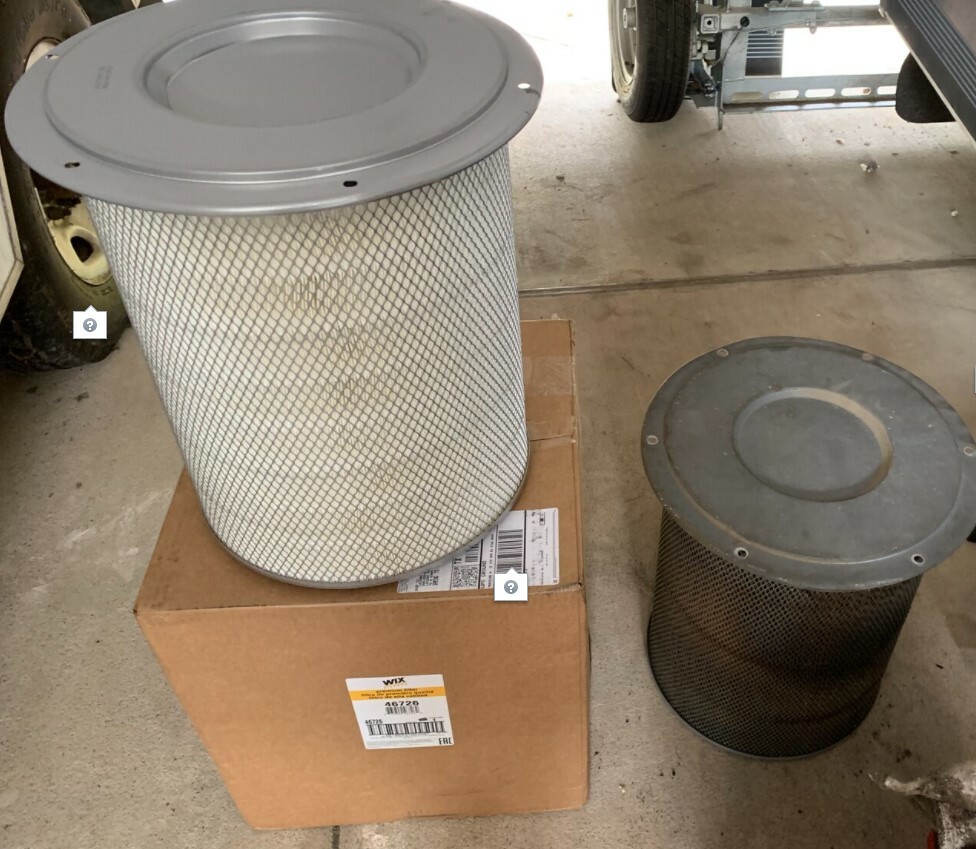

Yet another air bag, shock and engine air filter replacement on 91 GV U300
Spent the last few days to replace the air bag and shock for my 91 GV U300. I know it has been posted numerous time here. I benefit tremendously from those posts about changing the air bag and shock. I just want to share my experience to maybe help others.

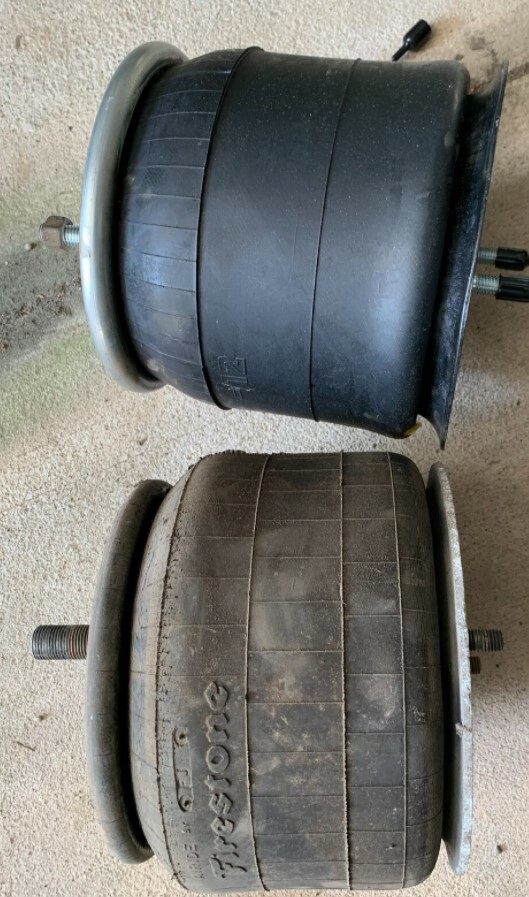

Air Bag

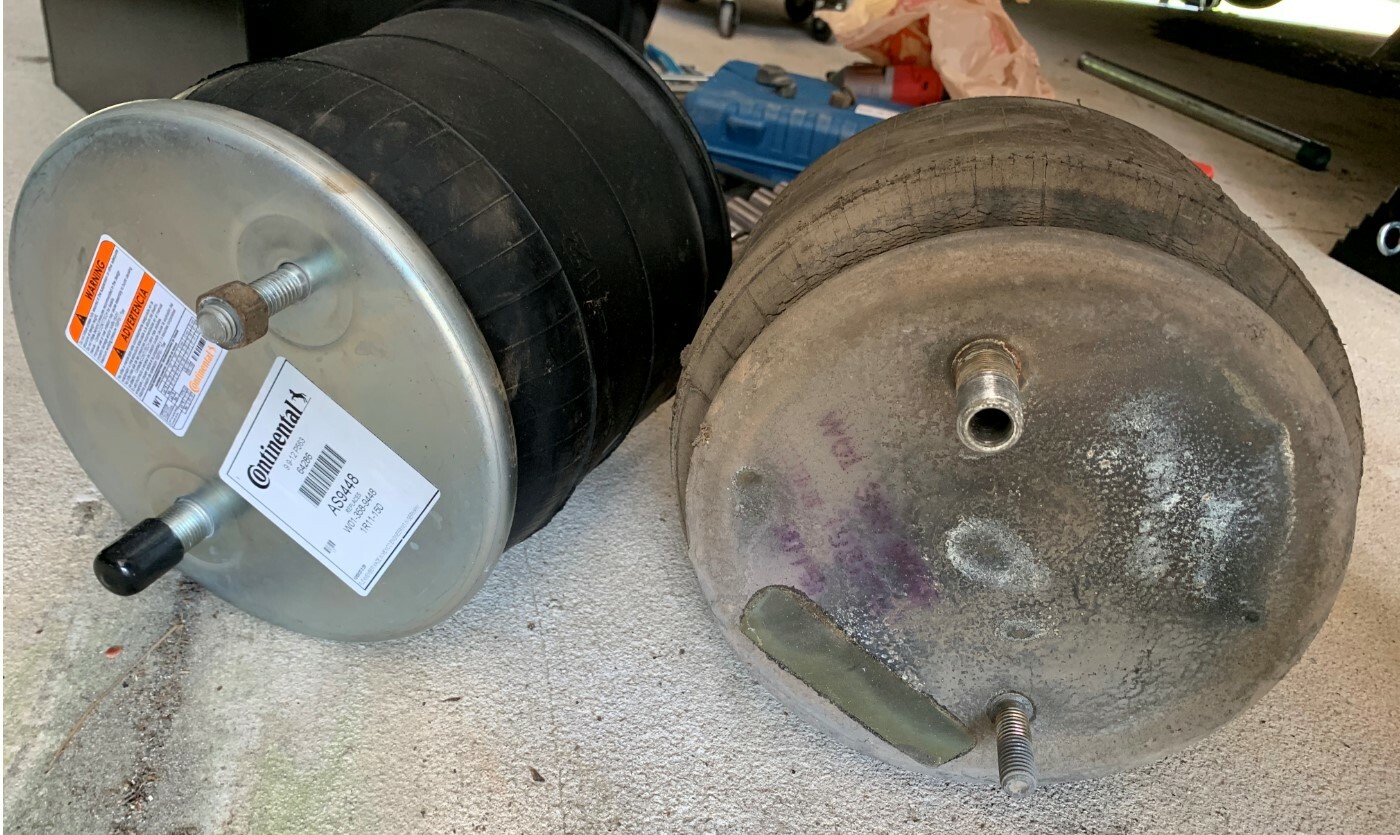

AS9448 by CONTITECH from FintItParts
About $90/EA delivered. TAKE10 should give another 10% off.
No need to discuss this model. It has been used by many many people here. Cheaper than the Firestone bag with decent quality.
I am not sure if the proper term is called Air bag or air spring. I see people using both term here. People are confused with the car air bag deployed during accident. I think most people here call it air bag.
Shock

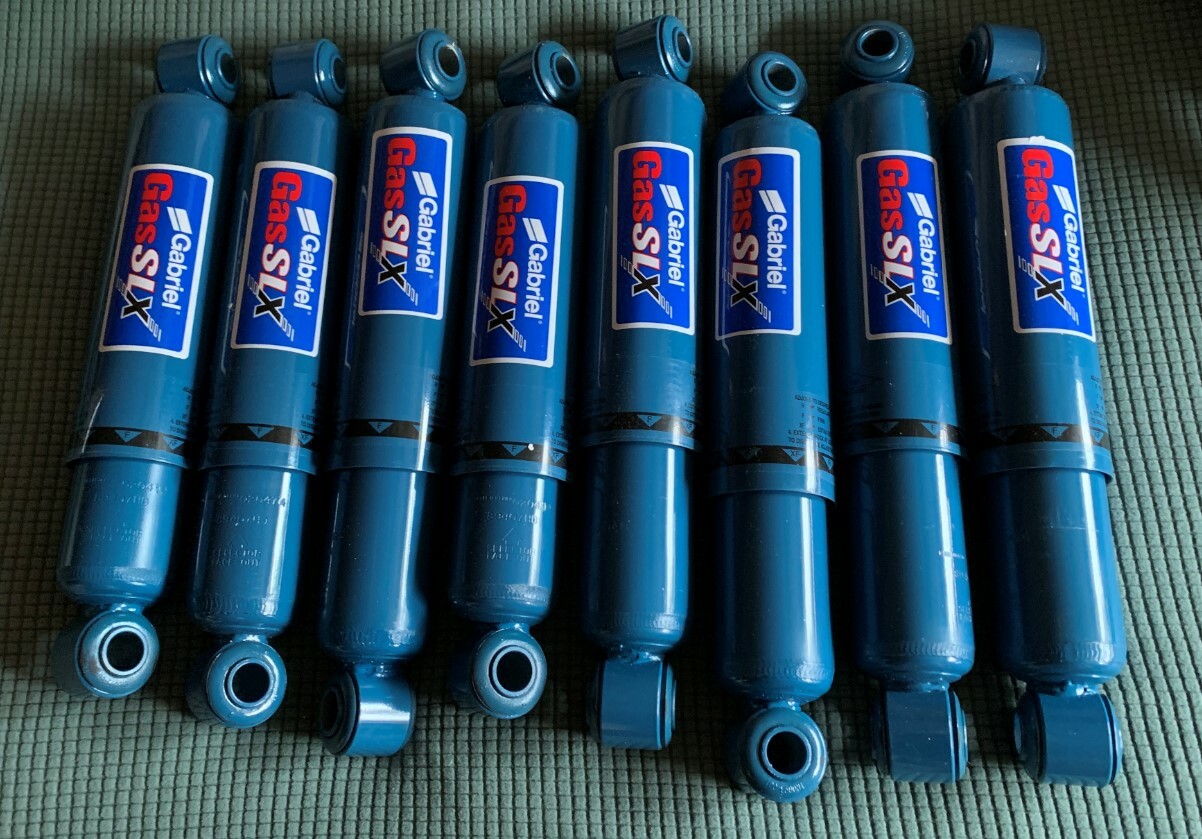

Gabriel 89407 GasSLX Heavy Duty Adjustable Shock
About $75/EA. If you are patient enough, you can buy them at $40/EA.
Not as good as the original Koni FSD shock, but it is about 1/4 of the price. And I think it is a well established brand in Trucking business.
Tools I used
- Milwaukee Mid Torque Wrench 600ftlb
- 1 1/8 Shallow Impact socket
- 10 inch and 5 inch extension bar
- 1 inch 2 ft pipe as break bar
- G32104-0604 Air fitting just case the air fitting is damaged.
Setps
First step is safety. Block rear wheels from both side to make sure the coach will not accidentally move.
Raise the coach to maximum then put for 12 inch standard receiver tube between the frame and the house. My 91 GV has the three lever manual level system. Just pull all of them backward, when the air pressure reach to 120PSI, there is enough space between the frame and the house to put in the 12inch tube without issue.
I used 4 tubes. Two before the rear wheel two after the front wheel.
After tube in place, release the valve so that coach firmly seat on the tube. This gives enough space to work on the air bag and shock.
Many post talked about replacing the air bag without removing the skirt. But to replace the shock I don't see any other way. The skirt has to be removed to gain access to the shock. It just make things so much easier. And it is pretty easy to be removed.
Rear
Front

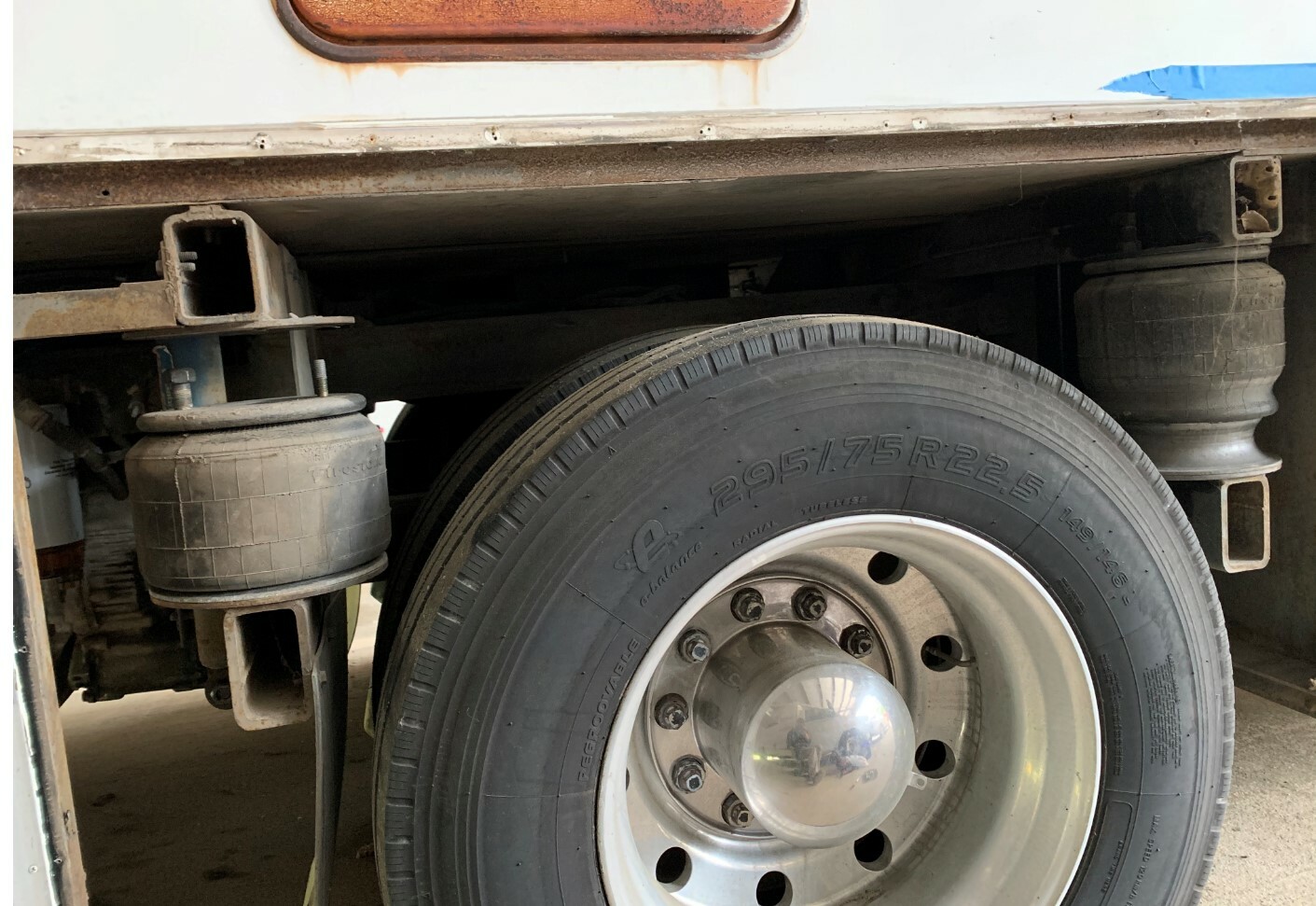

As you can see, once the skirt is removed, the air bag is right in front of you.
Use 3/4 wrench or socket to remove the 3 bolts. Use 1 1/18 inch to remove the nut holding the air fitting.

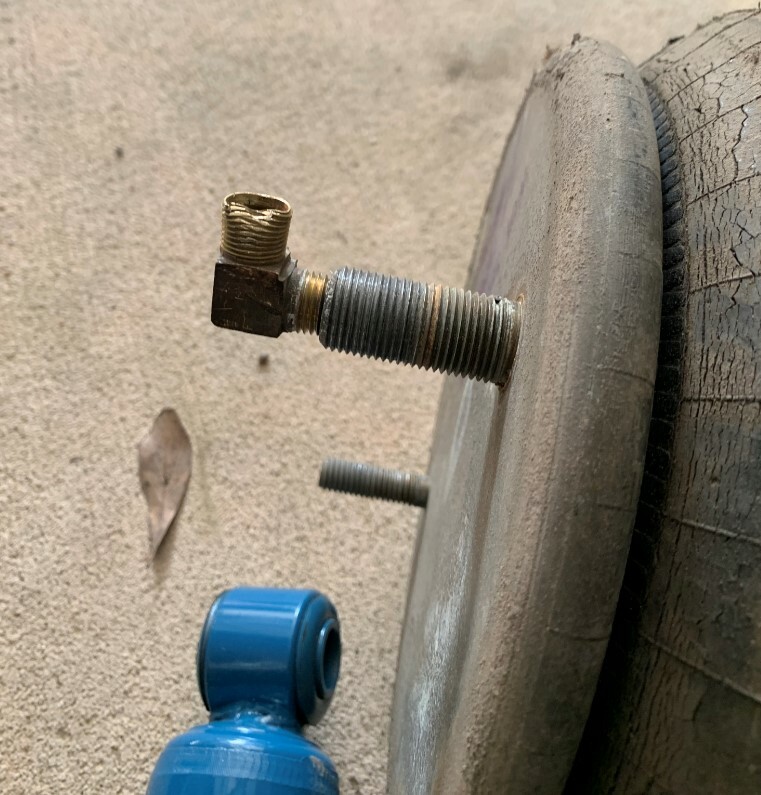

Use 5/8 to remove the air hose compression fitting. Use 5/8 wrench to remove the 90 degree air fitting. I have two seized air fitting that I have to cut using a saw. So it is a good idea to have few of the fittings ready just in case.

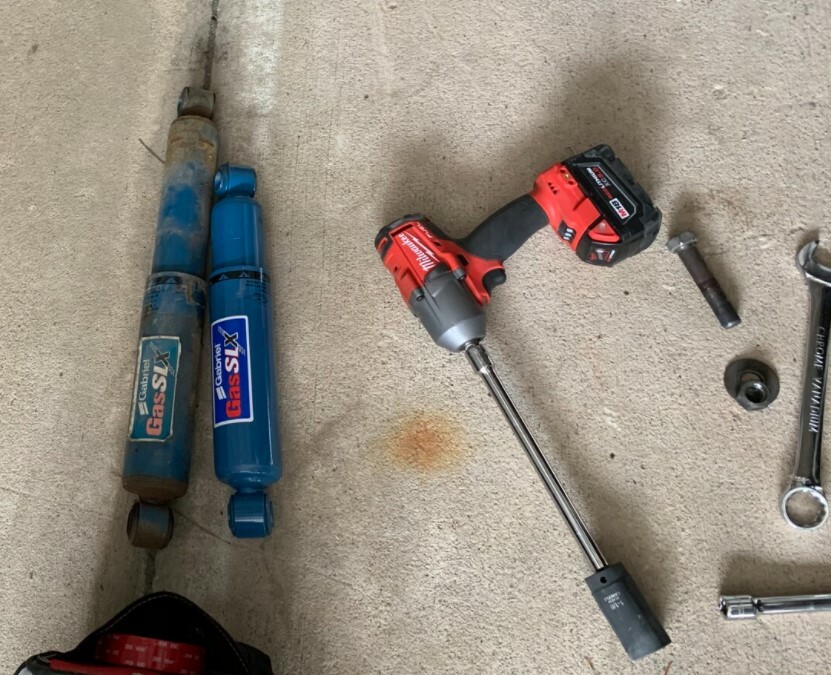

Once the air bag is removed, the access to shock are much easier. Using the socket and extension bar, I am able to use the Milwaukee mid torque to take them off. The mid torque is struggling to take off the 1 1/8 bolts with over 30 years of corrosion. I think his high torque big brother should handle the bolts with easy.

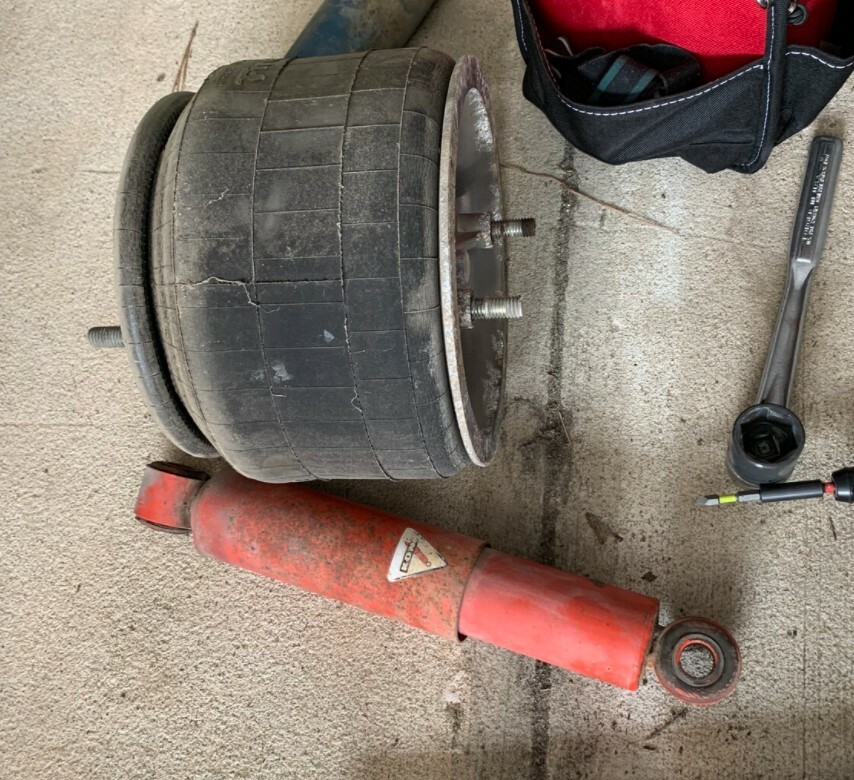

For this coach, I think the previous owner replaced the shock once. 6 shocks are already Gabriel 89407 GasSLX. Only 2 are original Red Koni Shock. The shocks looks like still in decent condition. Didn't see any sign of oil leak.
It took me about two days to finish the work. Most of the time spent on fighting with the 1 1/8 bolts and nuts. The mid torque wrench is struggling so I have to use one inch pipe break bar which slows down the process. With proper tools, I think the process can be greatly improved. It is definitely doable within a day to change just all 8 air bag only.
Thanks for you reading, hope you find this helpful.
