Topic: Part# or brand name needed - 1993 U300GV: AC Compressor (Read 500 times) previous topic - next topic

Part# or brand name needed - 1993 U300GV: AC Compressor

Hello all,

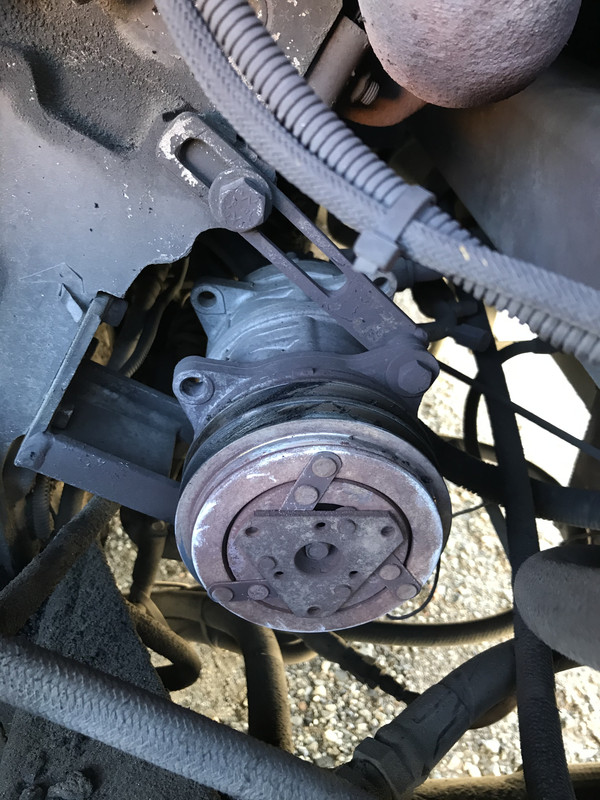

Both fan belts on my AC Compressor broke so I assumed they aged out. When I went to replace them today I realized that the compressor seized. It won't turn at all.

Does anyone happen to know the brand or part number?

We looked everywhere and cannot find nothing on the unit. We found a sticker but the info has faded away.

Thanks all,

Jeff

1993 U300 40ft GV SE
Build # 4344

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #1 –
Sanden
91 GV U300 Unihome 40' Build 3811
6V92TA Detroit

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #2 –
Thanks Stump.
1993 U300 40ft GV SE
Build # 4344

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #3 –
port configuration  and letter stamped on the backside(head)  will determine what sanden model..
Len Barron
1988 GV36 U280 3208T(250hp)/MT643
1972 Jeep Commando LS2/4L65e
2000 Chevy Express Hightop Campervan
LBZ Duramax /6sp Allison

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #4 –
the 508 is the most common model...it's likely what you have..
Len Barron
1988 GV36 U280 3208T(250hp)/MT643
1972 Jeep Commando LS2/4L65e
2000 Chevy Express Hightop Campervan
LBZ Duramax /6sp Allison

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #5 –
In 2007 I replaced mine and converted it to 134A.  Here's some photos.
I installed a new dryer too.
John Fitzgerald
1991 U300 (SAI) Side Aisle Island Bed 40'
Detroit 6V92 with Allison Retarder
Meridian (Boise), Idaho

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #6 –
Thanks John
1993 U300 40ft GV SE
Build # 4344

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #7 –
One more question. Does anyone have info on the dryer? Isn't the dryer up front? I know I have to replace it as well.
1993 U300 40ft GV SE
Build # 4344

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #8 –
Jeff, when I replaced my compressor, I also replaced the receiver dryer and the expansion valve.  One was under the dash, in the center, by the heater box.  I had to take out the center console to get to it.  The other was on the drivers side back near the battery isolator.

Location of the Dash Air Expansion Valve on a 2003 U320
97 U295 40, Build #5040, 6C8.3 325 HP
Oregon Continuous Traveler
Samsung Residential #RF20HFENBSR,
Xantrex SW2012, (3)AGM8D Hse, (2)AGM Grp24 Eng, Victron BMV-712, 1800w Solar 4 LG & 2 Sunpower
Extreme Full Body Pt w/hdlmps, new furn/floor, 4 down Lexus 2004 GX470 AWD curb weight 4,740 lbs
Prev: 1990 Barth, 10L 300 2 yrs; 91&92 Monaco Signature, 10 yrs, 10L C 300 &  6C8.3 300; 1997 ForeT 6C8.3 325 since May 2017.  Employed by Guaranty RV 14+ yrs.  Former VW New Car Dlr/Service Dlr, Sales Mgr, Rv Sales, and Service Adviser from 1968-2017
"Don't criticize what you can't understand" Bob Dylan

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #9 –
Thanks Jack.
1993 U300 40ft GV SE
Build # 4344

Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #10 –
On a Grand Villa it's up front, passengers side, behind grill.
Sorry, I don't have a P/N , nor can I see one.  IIRC, I just matched it from the old.  I remember having a choice between one with a sight glass and without.
From reading about them (back then) R134A systems don't use a sight glass; charging requires use of gauge pressures only.  Despite that I choose a windowed unit and figured it wouldn't hurt.  I do like being able to see the liquid flow when I do check it each season.
John Fitzgerald
1991 U300 (SAI) Side Aisle Island Bed 40'
Detroit 6V92 with Allison Retarder
Meridian (Boise), Idaho


Re: Part# or brand name needed - 1993 U300GV: AC Compressor

Reply #11 –
Here is the one on my coach
