Re: RV barn update

Reply #40 –
Typical.  It seems nowdays when a supplier or contractor actually follows the deal they have committed to its cause for astonishment and celebration.  Tell  em they loaded the box truck they can unload it as well.  Definitely not something you want to do by hand. Nfw. Potential for damage to you and your materials.  Flatbed at least.

Any chance your erection contractor could unload and place the materials where they want them?

Enjoying your build thread, lots of good info.



Re: RV barn update

Reply #41 –
Thanks for sharing your project.  I appreciate it.  I looked at several construction variations and went with stick built because we could do it ourselves. When I built my shop I looked at structural insulated panels for the roof and walls with a 6x18" center roof beam, 36' long.  Materials would have been cheaper. I would have had a building in 2 days.  But the cost of a crane and erecting crew made it much more expensive in the long run.

A steel framed building is very nice.  Please post pictures along the way.

Re: RV barn update

Reply #42 –
getting 13 foot structural members out of a box truck, the liftgate will be useless. why it would take me all day with lots of breaks to bust up the bundles and carry it out piece by piece. what fool would ship it that way, cant drag & fork it out without risking bending them.

Re: RV barn update

Reply #43 –
"Any chance your erection contractor could unload and place the materials where they want them? "

We're the erection team.  I want to see how far I can go doing it with a little help from Kristi and a couple of friends during critical phases.  I can get an off road forklift with telescoping boom for the rafter/stud sections and a scissor lift for working overhead.  I've talked to a couple of contractors who won't touch the project.

Re: RV barn update

Reply #44 –
Quote from: Chuck Pearson –
Sven, I see you didn't use a vapor barrier.  That means your slab is very  unlikely to develop surface cracks, believe it or not.  That's one reason  driveways typically don't develop surface cracks and house slabs do.  No idea of what the mechanics are other than possibly the barrier inhibits hydration below, and surface cures more quickly leading to stress in  the surface.
The purpose of a vapor barrier, somewhat misnamed, is to prevent the ground from absorbing the water out of the concrete and interfereing with the hydration process.

Re: RV barn update

Reply #45 –
Quote from: TGordon –
The purpose of a vapor barrier, somewhat misnamed, is to prevent the ground from absorbing the water out of the concrete and interfereing with the hydration process.
They wet the soil (soaked) before the pour, hopefully that took care of it.  Good information for those planning a project.

Re: RV barn update

Reply #46 –
Quote from: TGordon –
The purpose of a vapor barrier, somewhat misnamed, is to prevent the ground from absorbing the water out of the concrete and interfereing with the hydration process.

Exactly.  Modifies the hydration process.  Unbalanced cure leads to stress in air exposed top surface= shrinkage cracks.

Sven, do you have any kind of auto screw feeder for the 3 million screws you will be driving?  I have one I can loan, but you will most likely need to get the proper nosepiece for it.  It's a Quik Drive.

Re: RV barn update

Reply #47 –
Quote from: Sven and Kristi –
"Any chance your erection contractor could unload and place the materials where they want them? "

We're the erection team.  I want to see how far I can go doing it with a little help from Kristi and a couple of friends during critical phases.  I can get an off road forklift with telescoping boom for the rafter/stud sections and a scissor lift for working overhead.  I've talked to a couple of contractors who won't touch the project.

On a night, with a full moon, at midnight, throw some blue pills at it; it will erect itself.

Re: RV barn update

Reply #49 –

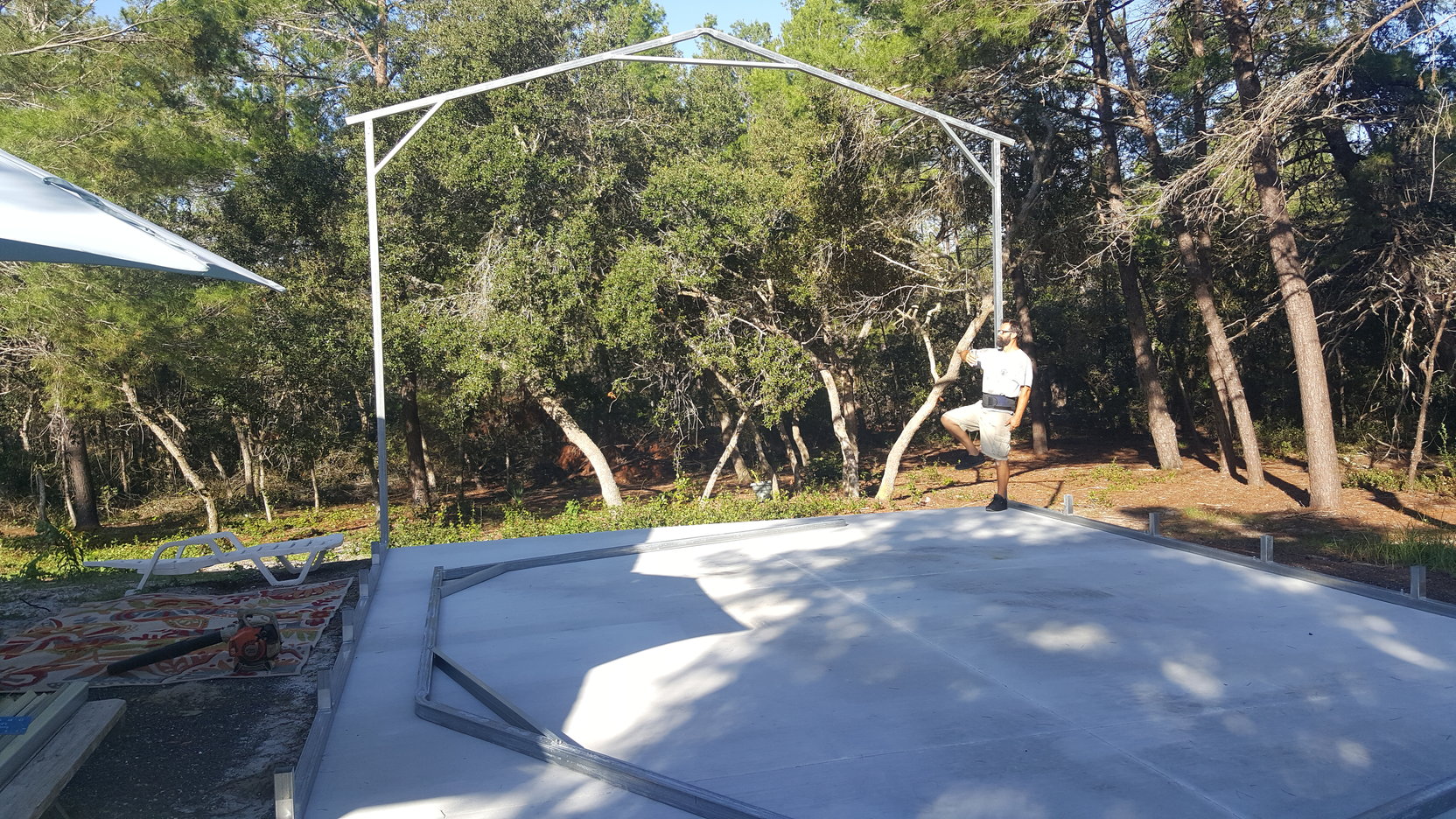

Finally getting ready to go up.  Kristi and I experimented with the first section and tomorrow ("erection day") a couple of friends will help erect the rest of it.  It has been a long road, but we had to wait until the temps got up to around 100.  Always wanted an erector set....

Re: RV barn update

Reply #50 –
Looks great!  Brings back memories lol...






Re: RV barn update

Reply #51 –
Looks great. I have seen Susan do the same dance as Kristi is doing.  It is great that you are doing this together with the help of friends.

Re: RV barn update

Reply #52 –
Cuure do you have a pic of it finished?

Re: RV barn update

Reply #53 –
Sven,

Are you using 4,000 PSI crete? 6 inch with wire mesh poured right will have no issues concerning weight. It really needs to be cooled with water for three days to cure before loading it. I am not sure why you would need to follow municipal codes if not listed with the secretary of State as a corporation? You can also add accelerator to the mix if you like, not much difference in cost.

Re: RV barn update

Reply #54 –

Hdff

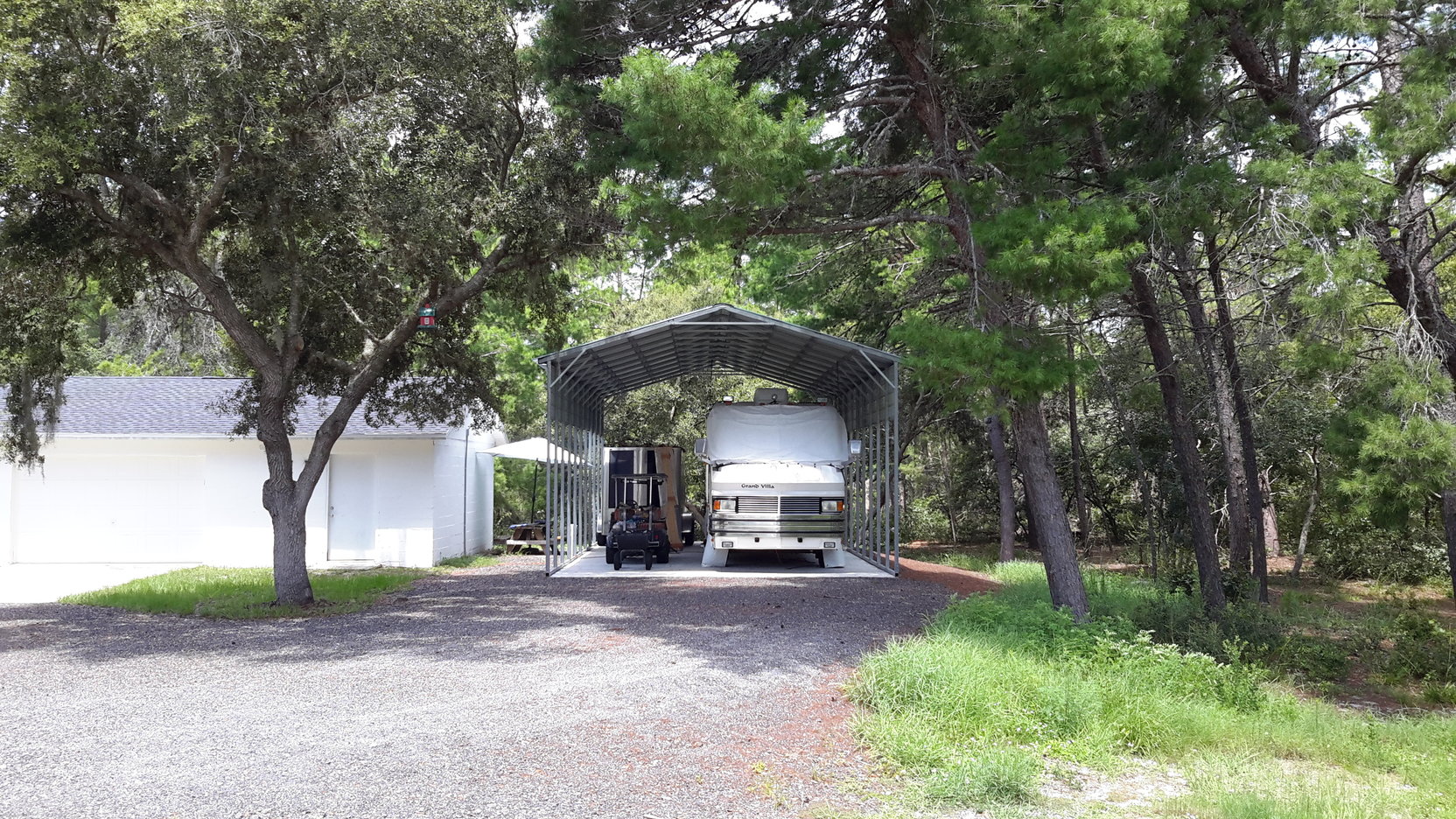

Here is the finished barn. 20x40x14



Re: RV barn update

Reply #55 –
Quote from: cubesphere –
Sven,

Are you using 4,000 PSI crete? 6 inch with wire mesh poured right will have no issues concerning weight. It really needs to be cooled with water for three days to cure before loading it. I am not sure why you would need to follow municipal codes if not listed with the secretary of State as a corporation? You can also add accelerator to the mix if you like, not much difference in cost.
We are well past the concrete stage.  We used #4 (1/2") rebar, 6" thick, 18" on the perimeter.  It has cured for about a month now.  It is 4000 PSI.

Re: RV barn update

Reply #56 –
Looks great!

Re: RV barn update

Reply #57 –

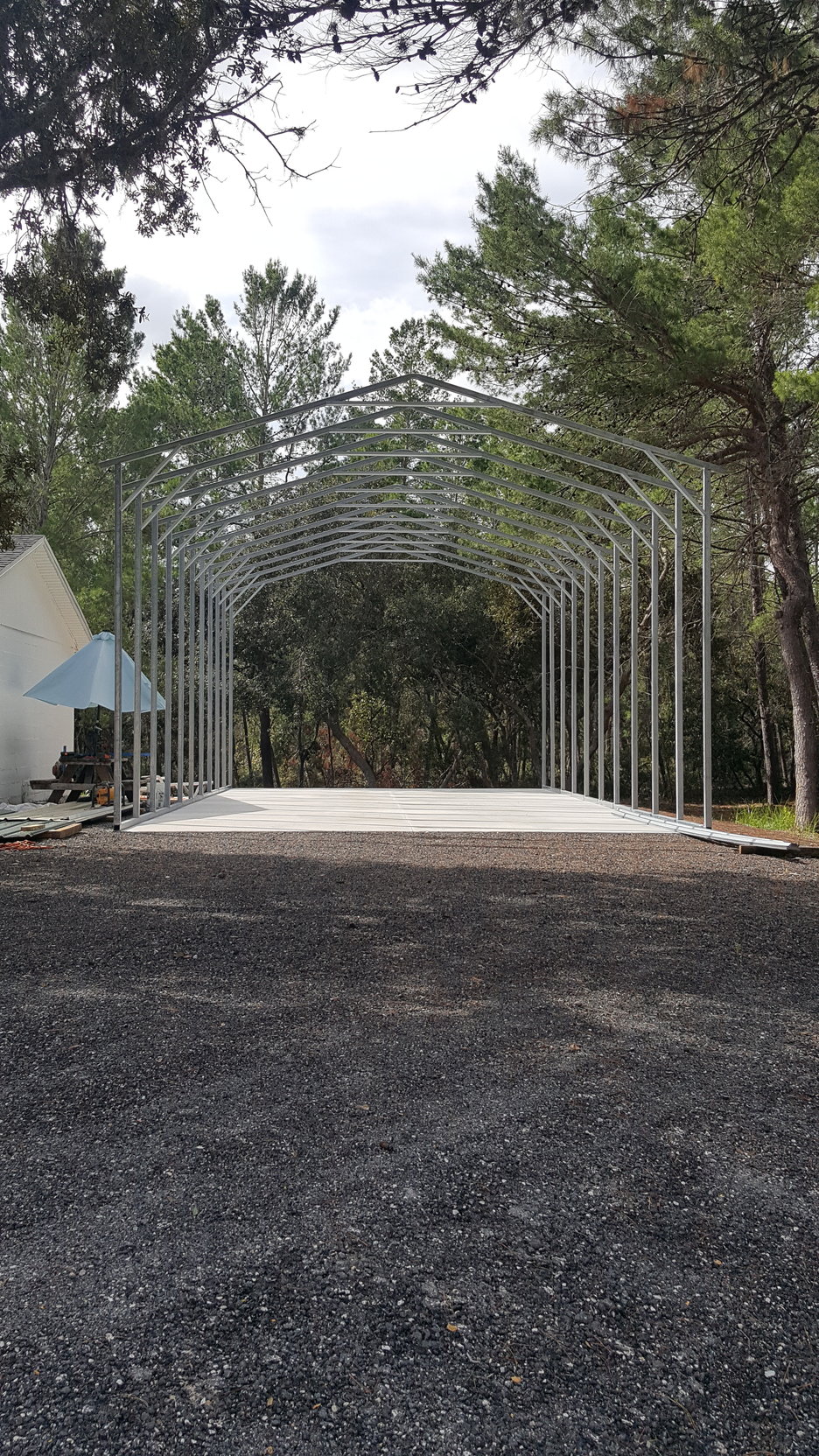

With the help of a couple of friends (thanks "rbark"), we got it up in an hour and a half.

Re: RV barn update

Reply #59 –
Quote from: Sven and Kristi –
With the help of a couple of friends (thanks "rbark"), we got it up in an hour and a half.
Looking at your photo of the erected framework, I had a terrible thought.  If it was me I'd have somebody remove that big old dead tree.

Wouldn't want it to blow down in a storm and damage the new barn!    :o
